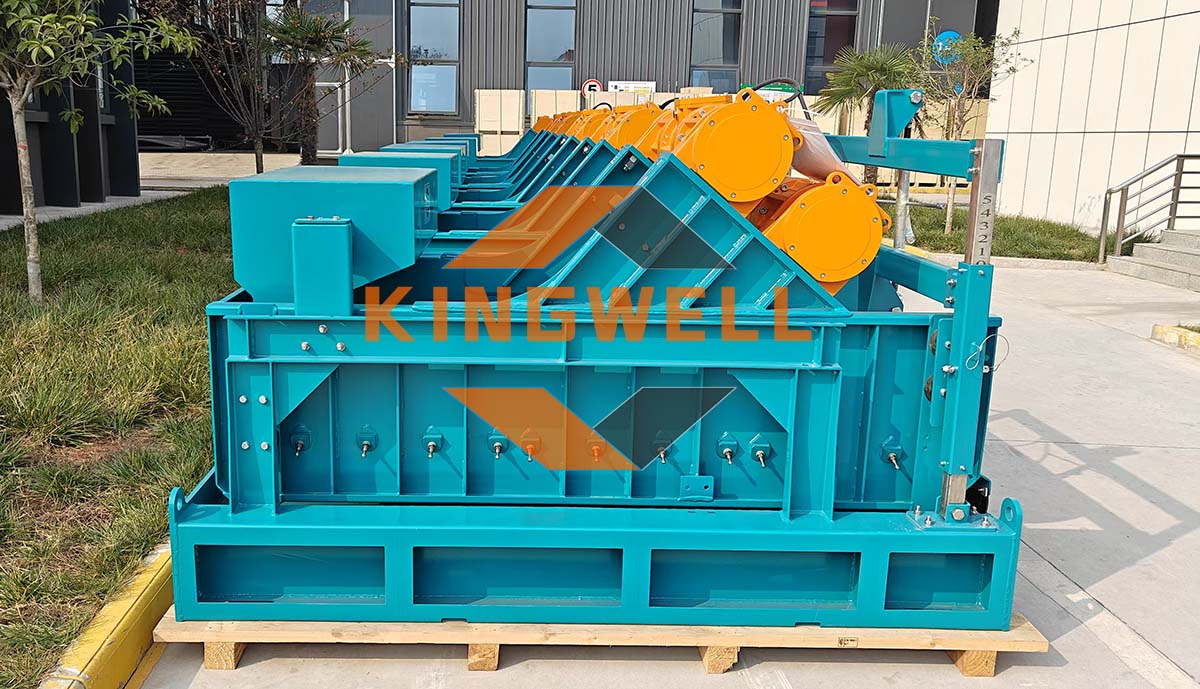

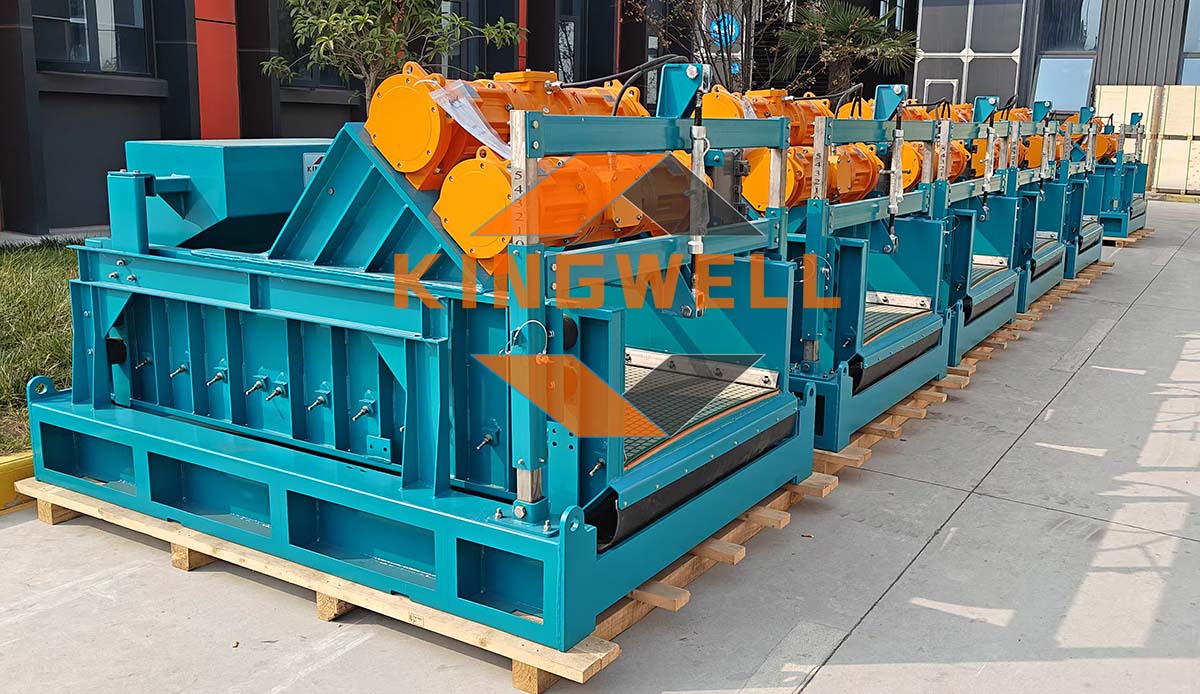

KWD2000 Linear Motion Shale Shaker (Derick 2000 Equivalent) Successfully Delivered to Central Asia

Six units of KWD2000 linear motion shale shakers (Derick 2000 equivalent) have been shipped to Central Asia. As a professional supplier of oil and gas drilling equipment, customer satisfaction is our top priority. To meet the client's specific requirements for drilling shale shakers, we specially customized this linear motion shale shaker, which is improved based on the Derick 2000 model. It not only meets the customer's demands for interchangeable wear parts but also fulfills their requirements for easy maintenance. Most wear parts are interchangeable with the Derick 2000 shale shaker. For wear part materials, we used higher-quality materials to ensure better performance.

Technical Specifications of KWD2000 Shale Shaker
(1-1) Model: KWD2000
(1-2) Vibration Type: Linear Motion
(1-3) Processing Capacity: 120 m³/h
(1-4) Vibrator Motor Power: 2 × 1.84 kW (Italian OLI motors)
(1-5) Screen Quantity: 3 pcs
(1-6) Screen Dimensions: 697 × 1053 mm
(1-7) Total Screening Area: 2.2 m²
(1-8) Adjustable G-Force: 7.5G
(1-9) Explosion-Proof Certification: ExdII Bt4, CNEX
(1-10) Amplitude: 6.5–7.5 mm
(1-11) Adjustable Slope Angle: -1° to +5°
(1-12) Overflow Height: 746 mm
(1-13) Power Supply: 3-phase 380V
(1-14) Frequency: 50 Hz
(1-15) Overall Dimensions (L×W×H): 2800 × 1600 × 1500 mm
(1-16) Weight: 1600 k

In addition to the KWD2000 shale shaker with 3 screens, we can also supply:
    KWD2000 shale shaker with 4 screens
    Derrick 500 equivalent shale shaker
For detailed specifications and technical information, please contact us. We are ready to provide the best solutions for your solids control needs!
